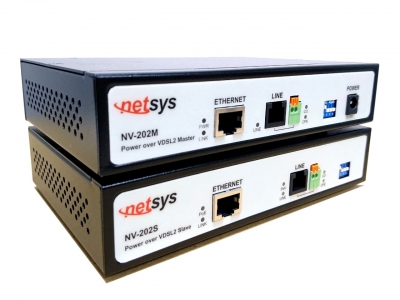

NV-202M/S

LAN extender with Remote Power

NV-202M/S solution works in pairs for point to point connectivity. Its features of NV-202M can transmit data
and power over a single pair of copper wire up to 2000m(6,562ft). Without the need for local power supply, NV-202S can provide power budget up to 15 Watts to PoE ports. Operators are able to deploy PoE devices in any locations, installing security IP Cameras, wireless access point security / VOIP, or access control systems at any place where you have basic wire connectivity.

• Compliant with ETSI, ITU and ANSI VDSL2 standards
• Compliant with IEEE802.3 10BASE-T, IEEE802.3u, 100BASE-TX and IEEE802.3at Ethernet PD class 0
• Supports auto speed for Line port
• Support long reach mode up to 2km(6,562ft) / 7w power budget
• Supports Surge protection for line port
• Support OVP / OCP / OTP power protection and revise polarity auto adjustment
• Supports RJ-11/Terminal Block combo for Line port
• Supports 1 x RJ-11/Terminal block for VDSL line port using single pair phone cable
• Supports 1 x RJ-45 for fast Ethernet port with power injector (NV-202S only)
• Supports 1 x DIP switch for line speed and interleave delay setting
• Supports long packet size up to 1536 bytes
• Data and Remote Power work on the single pair phone line
• Spectral compatibility with xDSL (2B1Q/4B3T)
• DIP switch with CO and CPE mode selectable
• Support High band(500khz-30Mhz) / Low band (25khz – 30Mhz) working frequency selection
• Support INP / Interleave delay time setting over DIP switch
• Supports DIN-Rail mount installation
• Supports wall mounting




RESOURCE DOWNLOAD
 DataSheet

RELEATED PRODUCTS

ORDERING INFORMATION LAN extender with Remote Power
Product Code: NV-202M/S
